UNI-ARC INVERTER AC/DC TIG (DC MMA)
WELDER MODEL TIG-250s ADC
Features:
- Digital Pulse – For precise welding of thin gauge material or piping.
- Digital AC/DC current control. For precise welding adjustment.
- Portable & Light Weight.
- High Frequency Ignition.
- Stable Welding Arc.
- Low Electricity Consumption.
- High Duty Cycle Operation.
- This welder can be powered by electric generator.
(Recommended Generator – Min. 15kVA)
Accessories:-
- TIG Torch Assembly 26F (Mono) (4m)
- Earth Clamp Assembly 300A (3m)
- Argon Flowmeter with Gas Hose (3m)
UNI-ARC INVERTER DC MMA
WELDER MODEL MMA-250S
Features:
- Inverter design offers easy start arc, stable welding arc and low consumption of electricity.
- Portable & Light Weight.
- High Duty Cycle Operation.
- This welder can be powered by electric generator.
(Recommended Generator - Min. 15kVA). - Robust and easy to use. Accessories :-
- Electrode Holder Assembly 300A (3m).
- Earth Clamp Assembly 300A (3m).
UNI-ARC INVERTER DC MULTI
PROCESS WELDER MODEL MIG-250S
Features:
- This welder can be powered by electric generator.
(Recommended Generator Min. 15kVA). - Portable & Light Weight.
- Built-in E.M.I Filter.
- Stable Welding Arc.
- Low Electricity Consumption.
- High Duty Cycle Operation.
- Use 1kg / 5kg wire spool only.
- Accessories :-
MIG Torch Assembly SB15 (4m).
Earth Clamp Assembly 300A (3m).
CO2 Flowmeter with Gas Hose (3m).
UNI-ARC INVERTER DC TIG-MMA
WELDER MODEL TIG-250S
Features:
-
Excellent for thin gauge welding.
-
Portable & Light Weight.
-
High Frequency Ignition.
-
Stable Welding Arc.
-
Low Electricity Consumption.
-
High Duty Cycle Operation.
-
This welder can be powered by electric generator
(Recommended Generator - Min. 15kVA). -
Accessories :-
TIG Torch Assembly 26F (Mono) (4m).
Earth Clamp Assembly 300A (3m).
Argon Flowmeter with Gas Hose (3m).
UNI-ARC INVERTER DC
PLASMA CUTTER MODEL CUT-50S
Features:
- Maximum Cutting Thickness – 16mm (Mild Steel / Stainless Steel).
- Quality Cutting Thickness – 9mm
(Mild Steel / Stainless Steel)
- Portable & Light Weight.
- High Frequency Ignition.
- Stable Cutting Arc.
- Low Electricity Consumption.
- High Duty Cycle Operation.
- This welder can be powered by electric generator,
(Recommended Generator – Min. 15kVA).
- Accessories :-
Ergonomic Cutting Torch Assembly AG60 (4m).
Earth Clamp Assembly 300A (3m).
Air Regulator.
AIROX FLOWMETER REGULATOR MODEL
A1-AR & A1-CR
Features:
- Rugged forged aluminium alloy body for strength & safety
- Stem type seat assembly for more accurate seating
- Preset outlet pressure at 1.5kg/cm²
- Polycarbonate (PC) flow tube with scale of 0-25 litres per minute (LPM)
- Inlet pressure gauge for inert gas calibrated to maximum pressure 6,000PSI (400 Bar)
- External safety relief for all high pressure models for additional safety
- Bronze filter for all inlet stems
AIROX GAS REGULATOR MODEL A1
Features:
- Rugged forged aluminium alloy body for strength & safety
- Stem type seat assembly for more accurate seating
- External safety relief for all high pressure models for additional safety
- Bronze filter for all inlet stems
PRIMA CO2 FLOWMETER REGULATOR WITH HEATER MODEL 838CR-H
Features:
- Rugged forged brass body for strength and safety
- Inlet pressure Gauge for carbon dioxide gas calibrate to maximum pressure 4,500psi
- Flowrate: 0 - 25ℓ / min
- External safety relief valve on high pressure model for additional safety
- Side entry inlet stem
- Flowmeter with transparent polycarbonate outer cover for easy reading and 360°
- Visibility
- Available in either 36V, 110V or 220V heater
- Certified to standard EN2503

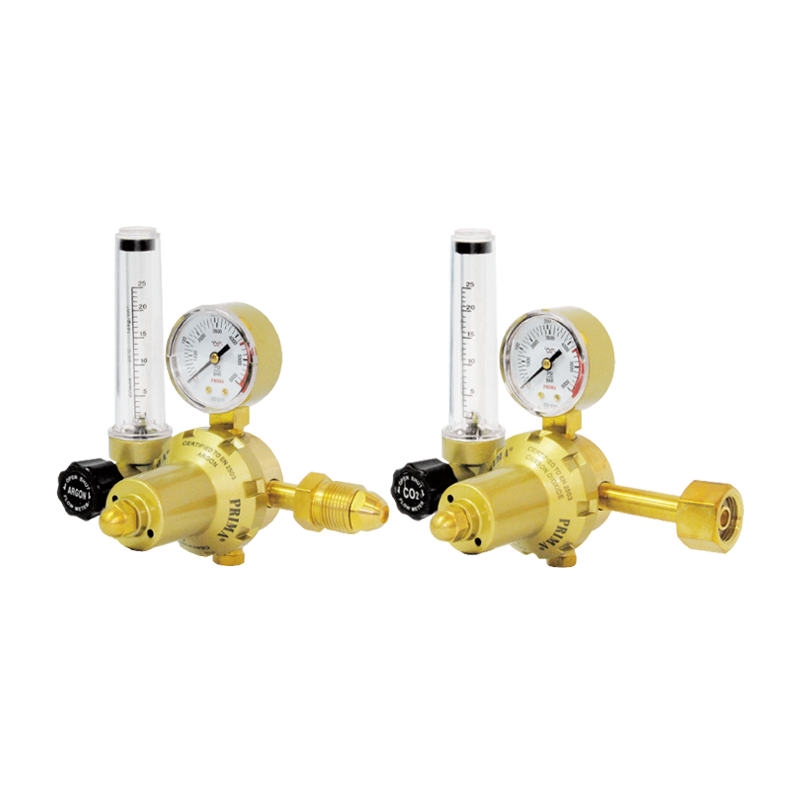

PRIMA FLOWMETER REGULATOR MODEL 838AR & 838CR
Features:
- Rugged forged brass body for strength & safety
- Preset outlet pressure at 1.5 kg/cm2
- Polycarbonate (PC) flow tube with scale of 0 - 25ℓ 4/min
- Inlet pressure gauge for inert gas calibrated to maximum pressure 6,000psi (400 Bar)
- Stem type seat assembly for smoother and more accurate gas flow
- External safety relief valve on high pressure model for additional safety
- Inlet stem with bronze fitter to prevent dirt going into regulator
- Side entry inlet stem
- Certified to standard EN2503
UNI-FLEX REINFORCED GRINDING WHEELS
Available In Size :
- 100x6x 16mm
Grade : A24 R8 BF
Usage : For Carbon Steel
- 125 x6x22mm
Grade : A24 R8 BF
Usage : For Carbon Steel
- 180x6x 22mm
Grade : A24 R8 BF
Usage : For Carbon Steel

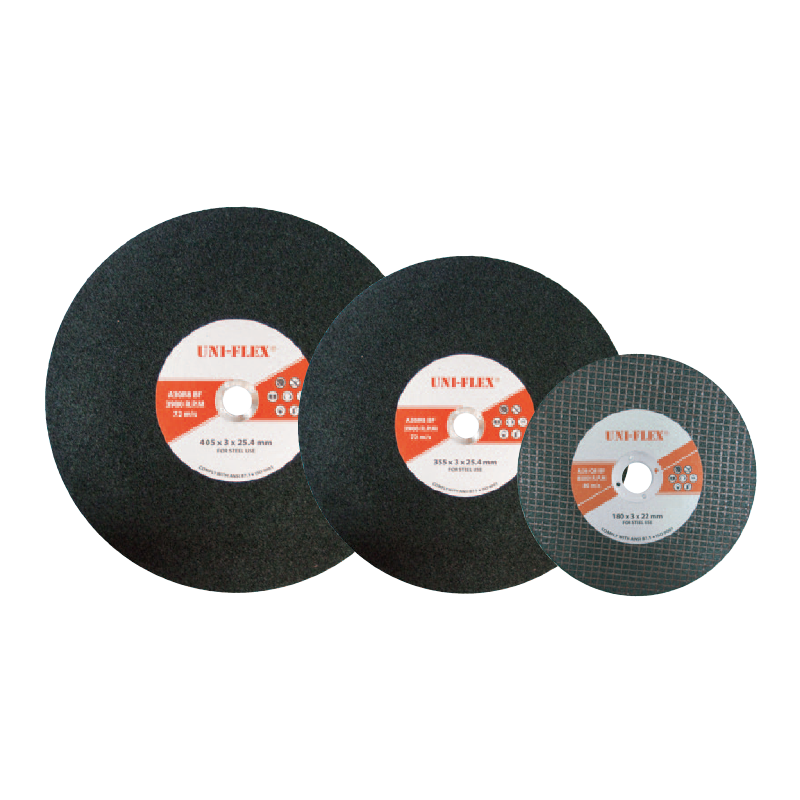

UNI-FLEX REINFORCED CUTTING WHEELS
Available In Size :
- 107 x 12 x 16mm
Grade :WA60 R8 BF
Usage : For Stainless Steel & Steel
- 100 x3 x 16mm
Grade : A36 Q8 BF
Usage : For Carbon Steel
- 180 x 3 x 22mm
Grade : A36 Q8 BF
Usage : For Carbon Steel
- 355 x 3 x 25.4mm
Grade : A30 R8 BF
Usage : For Cabon Steel
- 405 x 3 x 25.4mm
Grade: A30 R8 BF
Usage : For Cabon Steel

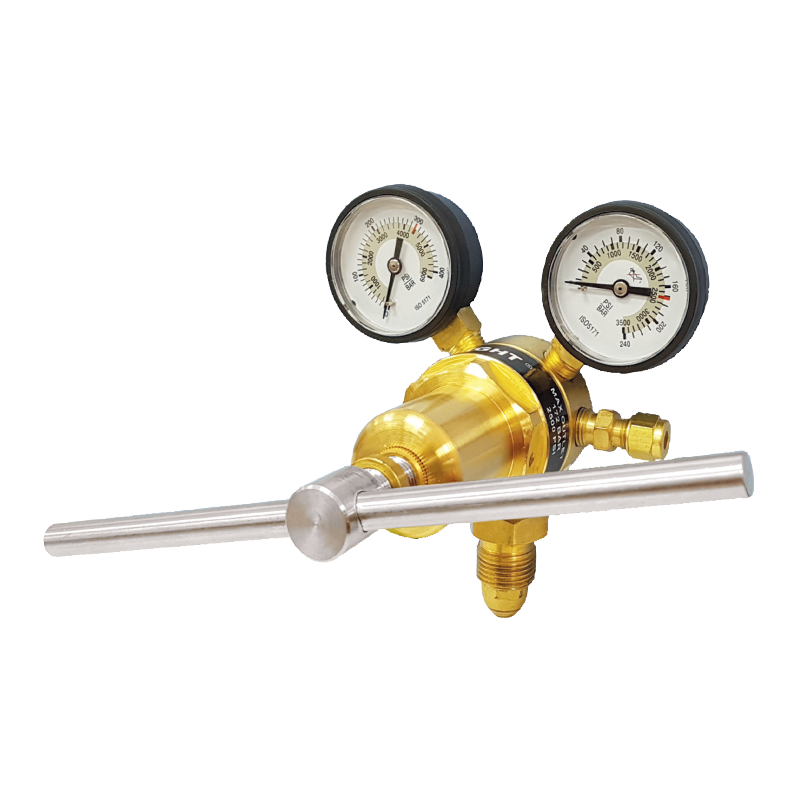

UNI-LIGHT HIGH PRESSURREGULATOR MODEL 800PSI, 1500PSI & 2500PSI
Features:
- Heavy duty brass forged body & housing
- Sintered bronze inlet filter
- 2-1/2" gauges
- Conforms to ISO 9001 standard for gas pressure regulators
- Max inlet pressure 300 Bar/ 4350 PSI
- Suitable for oxygen, nitrogen & inert gas

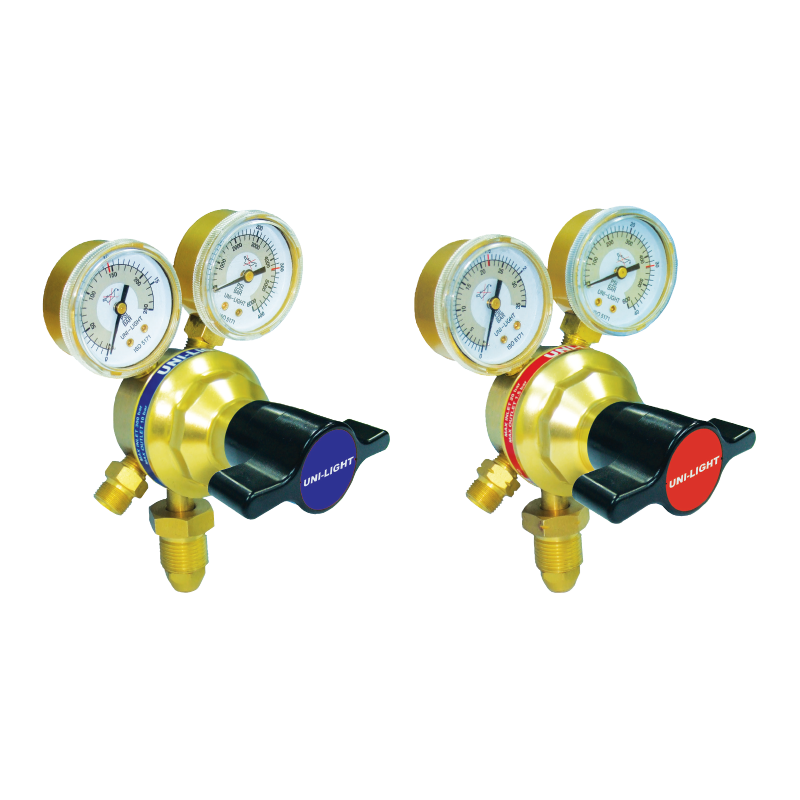

UNI-LIGHT REGULATOR MODEL 848
Features:
- Rugged forged brass body for strength & safety
- Inlet pressure gauge for Oxygen gas calibrated to maximum pressure 6,000psi
- Stern type seat assembly for smoother and more accurate gas flow
- External safety relief valve on high pressure models for additional safety
- Inlet stem with bronze filter to prevent dust going into regulator
- Certified to standard EN2503
UNI-LIGHT FLOWMETER REGULATOR MODEL 198-AR & 198-CR
Features:
- Drop forged brass body
- Preset outlet pressure at 1.5kg/cm2
- Polycarbonate (PC) flow tube with scale of 0-25ℓ / min
- External safety relief for all high pressure models for additional safety
- Sintered bronze filter for all inlet stems
- Suitable for Argon (Ar), Carbon Dioxide (CO2) and mixed gases
- Certified to standard EN2503
PRIMA REGULATOR MODEL 838
Features:
- Rugged forged brass body for strength & safety
- Oxygen regulator max. inlet 300 bar, max. outlet 10 bar
- Acetylene regulator max. inlet 20 bar, max. outlet 1.5 bar
- Stem type seat assembly for accurate seating
- External safety relief for all high pressure models
- Bronze filter for all inlet stems
- Fully tested
- Certified to standard EN2503
